Covered by US Patent Number 6,364,620.

APPLICATIONS

• Pumping stations
• Storm water removal
• Wastewater transfer
• Industrial wastewater

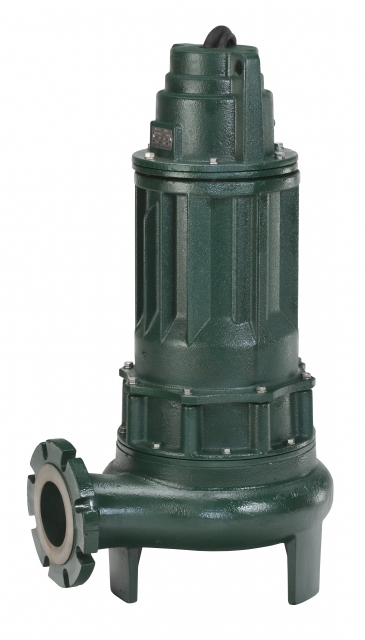

PUMP:

• Solids: 3” (76 mm) spherical capability
• Discharge: 4” & 6” flanged horizontal
• Seals – dual mechanical carbon/rotary ceramic/stationary, Buna-N elastomers
• Construction – cast iron ASTMA A-48, Class 30, 30,000# tensile strength, protected with a corrosion-resistant, baked-on epoxy powder coating
• Attaching hardware – 304 stainless steel
• O ring elastomers – Buna-N
• Impeller – 2-blade, semi-open ductile impeller with top pump out vanes
• Moisture-detection system
• Optional:
  • Silicon carbide seal(s)
  • Vortex impeller
  • Bronze impeller
  • Trimmed impeller
  • Additional cord length
  • Dry pit configuration
  • High temperature construction
  • Inverter duty motors
  • Rail systems

MOTOR:

• Stator – Class F insulation and lead wires, NEMA B design
• Thermal sensor and leads
• Housing – Class 30 cast iron, finned, oil-filled
• Ball Bearings – dual, high-carbon chromium steel
• Power cable length – 25’ (8 m)

Note: Product information presented here reflects conditions at time of publication. Consult factory regarding discrepancies or inconsistencies.
