Covered by US Patent Number 6,364,620.

APPLICATIONS

• Pumping stations
• Storm water removal
• Wastewater transfer
• Industrial wastewater

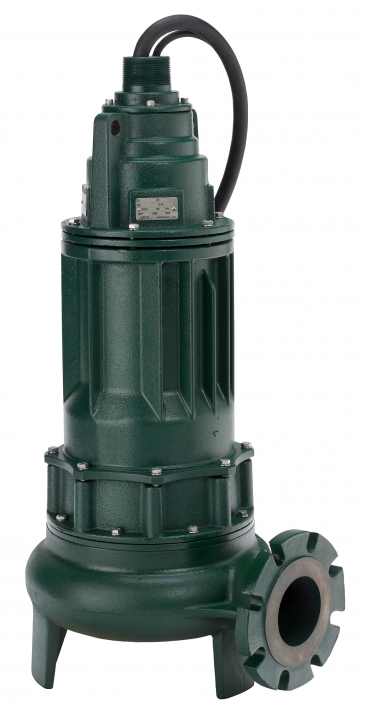

PUMP:

• Solids: 3” (76 mm) spherical capability
• Discharge: 4” and 6” flanged horizontal
• Seals – dual mechanical carbon/stationary ceramic/rotary, Buna-N elastomers
• Balanced concentric pump housing and impeller
• Construction – cast iron ASTM A-48, Class 30, 30,000# tensile strength, protected with a corrosion-resistant, baked-on epoxy powder coating
• Attaching hardware – 304 stainless steel
• O ring elastomers – Buna-N
• Impeller – two-blade semi-open ductile iron with top pump out vanes
• Moisture detection system
• Optional:
  • Silicon carbide seal(s)
  • Viton elastomers
  • Vortex impeller
  • Trimmed impeller
  • 50’ (15 m) power and sensor cables
  • Non-sparking rail systems

MOTOR:

• cCSAus rated Class I, Division 1, Groups C & D and Class Zone 1, Groups IIA & IIB Construction
• Tested to FM standards 3600 and 3615 by CSA
• Stator – Class F insulation and lead wires, NEMA B design
• Thermal sensor
• Housing – Class 30 cast iron, finned, oil-filled
• Ball Bearings – Dual high carbon chromium steel
• Power cable length – 25’ (8 m)

Note: Product information presented here reflects conditions at time of publication. Consult factory regarding discrepancies or inconsistencies.
